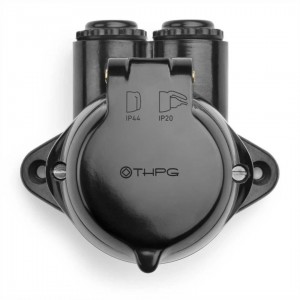

Socket THPG Bakeliit black IP44 NEW PRODUCT Product code 22648
click on image to view more
Description
For horizontal layouts with two outlets, e.g. for two or more outlets at different locations in a single room.
Two-part case and lid made of Bakelite with adjacent in- and outputs. Two lateral screw attachments facilitate wall mounting.
Outlet with integrated shutter. With spring clips. Cable mounted on wall surface.
Safety rating IP44 with sealed lid, rating IP20 when plug inserted.
Each outlet comes with an additional rubber ring: if applied to an IP44 plug as an additional seal, the outlet attains safety rating IP44.
€74,79
VAT 0%
€92,74
Price with VAT 24%
Delivery from €4,05 find out more
Technical data
- Brand THPG
- Output voltage 250V
- Rated current 16mA
- Protection class IP44
- Length 70.0mm
- Width 97.0mm
- Weight 190 g
- Casing colour black
- Casing material bakelite
- Work environment indoor use
- Manufacturer’s homepage www.thpg.com/en/socket-with-shutter-moisture-proof-thpg-bakelite-double-input.html
